DN360-P2H-B — Dual 30-Band Graphic Equaliser (Pin 2 Hot, Transformer Outputs)

The Klark Teknik DN360-P2H-B combines two of the DN-series’ most-requested configuration options into a single unit: modern pin 2 hot XLR wiring and balanced transformer outputs. The pin 2 hot configuration aligns with current international standard practice, while the transformer output stage delivers the galvanic isolation that broadcast and fixed-install engineers depend on for clean signal distribution.

The processing engine is the same legendary DN360 platform: dual 30-band Proportional-Q graphic equalisation. The curve characteristic — wide and musical at small excursions, surgical at large ones — is what made Klark Teknik the global reference for live and installed equalisation. An 18 dB/octave low-cut filter per channel removes subsonic content before it impacts amplifier headroom.

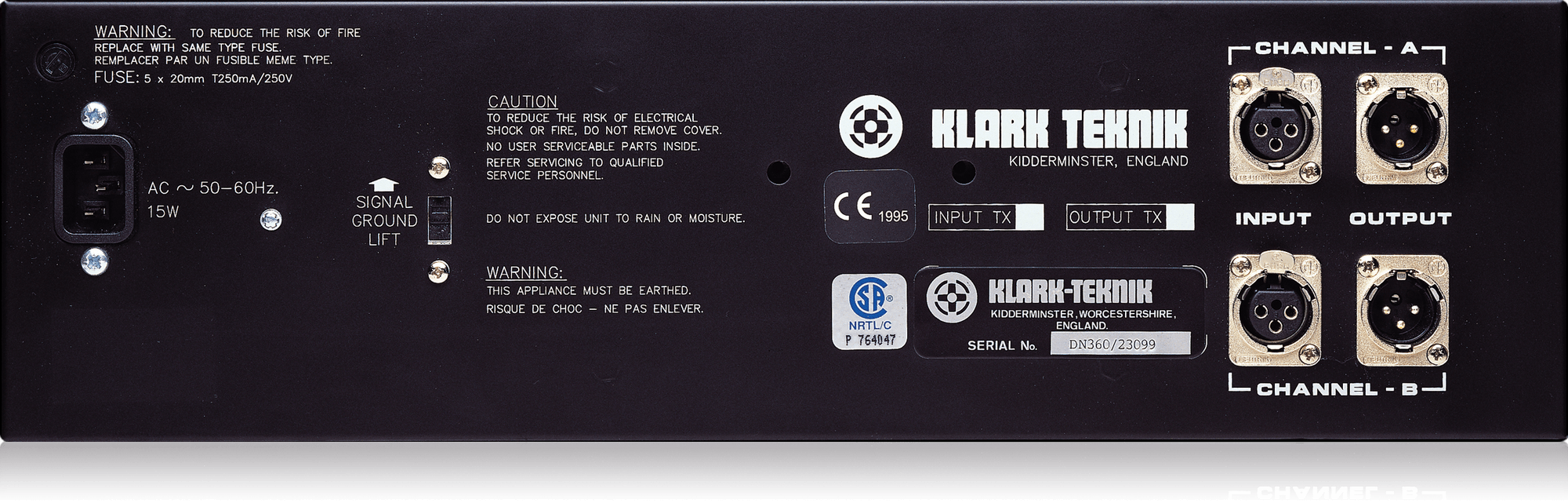

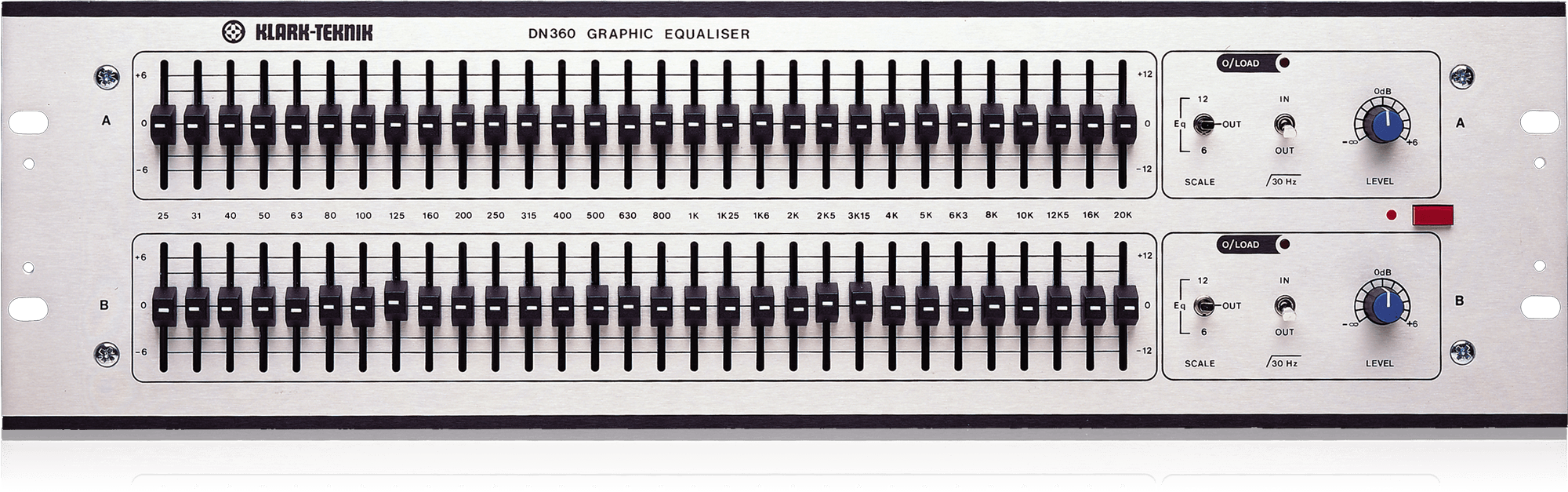

Mechanical execution matches the rest of the DN360 family: 3U rackmount chassis, 30 mm oil-damped faders with centre detents, channel bypass and scale-selection switches, power-off bypass relays, and industry-standard XLR connectors configured pin 2 hot with transformer-balanced outputs. The DN360-P2H-B is now obsolete; service and documentation remain accessible through Music Tribe Care.
