DN360-P2H — Dual 30-Band, 1/3 Octave Analog Graphic Equaliser (Pin 2 Hot)

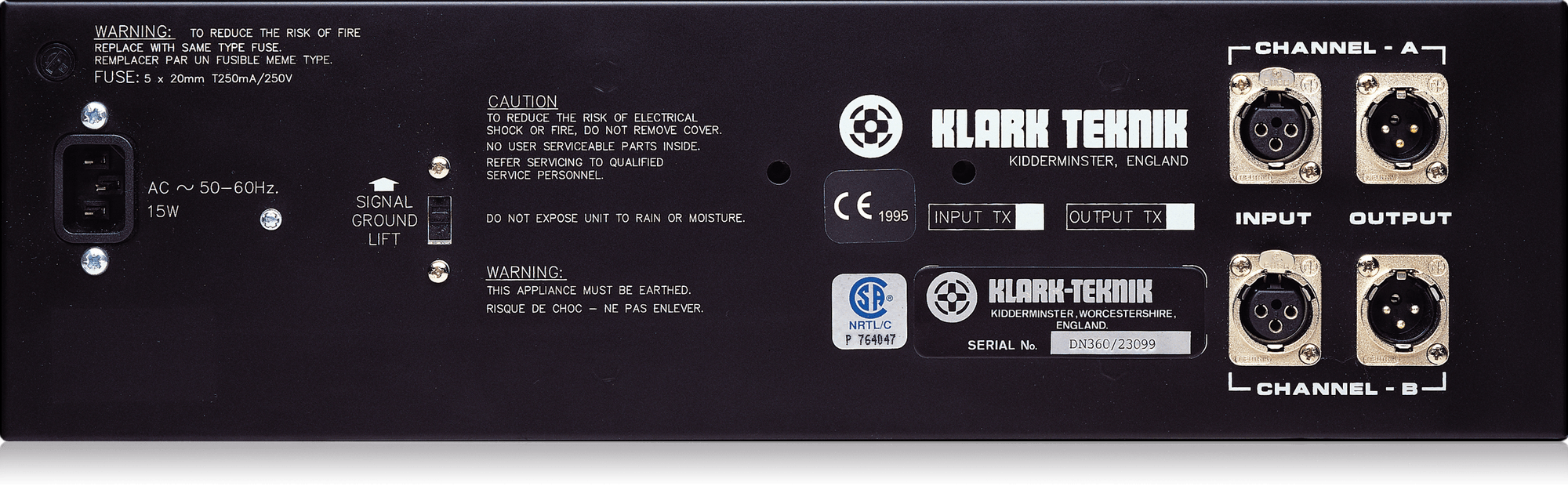

The Klark Teknik DN360-P2H delivers the same legendary Proportional-Q dual 30-band graphic equalisation as the standard DN360, configured for pin 2 hot XLR wiring — the modern international convention now standard in North American, European, and most international audio installations.

The Proportional-Q characteristic is what made the DN360 platform the reference for live sound engineers: wide, musical filters at modest cuts and boosts narrowing to surgical precision as fader travel increases, allowing feedback control and room correction without the audible signature of constant-Q designs. An 18 dB/octave low-cut filter per channel removes subsonic content that would otherwise waste amplifier headroom.

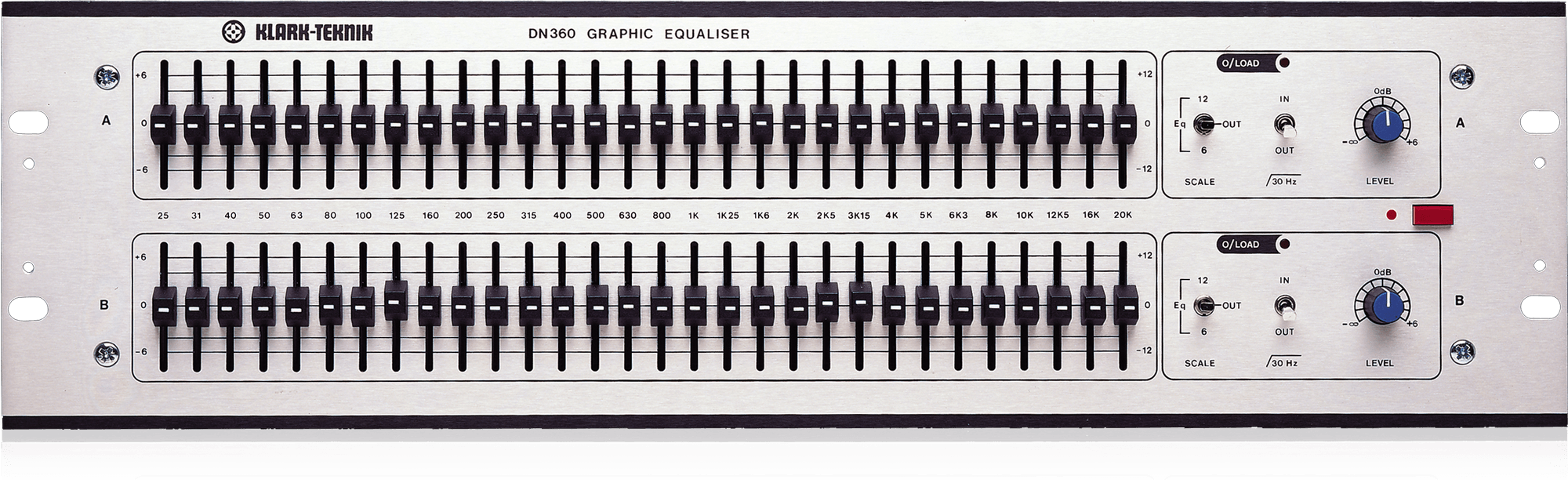

The 3U rackmount chassis is built for the touring environment: 30 mm oil-damped precision faders with centre detents, channel bypass switches, graphic EQ scale selection, and power-off bypass relays. The DN360-P2H is obsolete but remains in active service in countless racks worldwide. Service support continues through Music Tribe Care.
