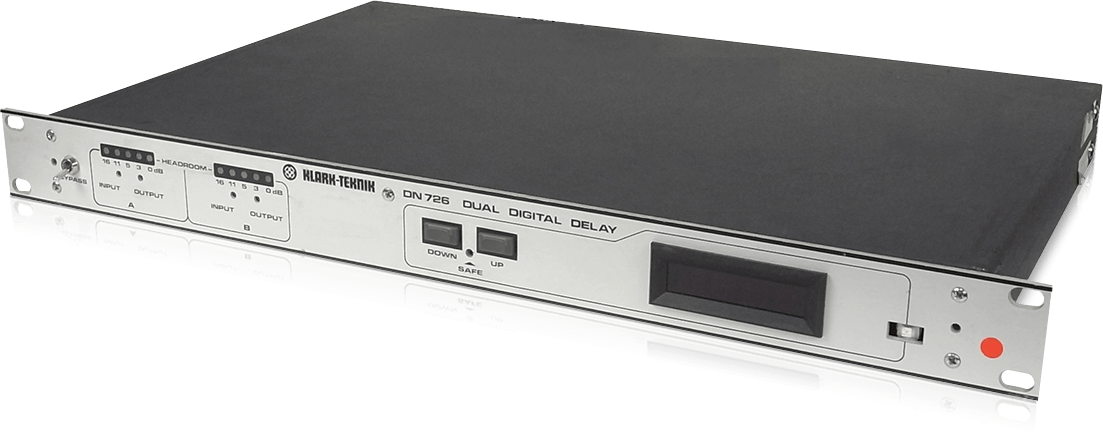

DN726 — Stereo Digital Audio Delay Line

The DN726 is a dual-channel digital delay line offering over 1.3 seconds of signal delay per channel, configured for stereo and dual-mono operation. It inherits the signal-path principles of the DN700-series, scaled to two independent channels for stereo programme delay, dual-zone PA timing and broadcast applications requiring matched stereo delay paths.

Delay Architecture

Each of the two channels offers more than 1.3 seconds of delay, with independent setting on a per-channel basis. The channels can be used as a true stereo pair tracking a single delay value, or as two independent mono delays serving different destinations from a single rack unit.

Application

Stereo programme delay for broadcast, dual-zone PA timing, stereo creative delay effects on tracking dates and FOH inserts where stereo image integrity is critical.

Specification Highlights

• Two-channel digital delay line
• >1.3 seconds delay per channel
• Independent or linked stereo operation

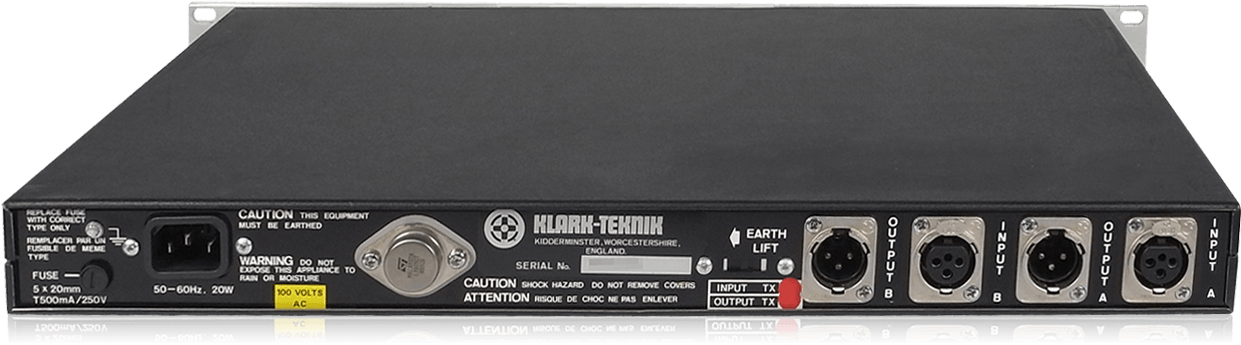

• Balanced I/O
• 1U rackmount
• Designed and built in the United Kingdom
