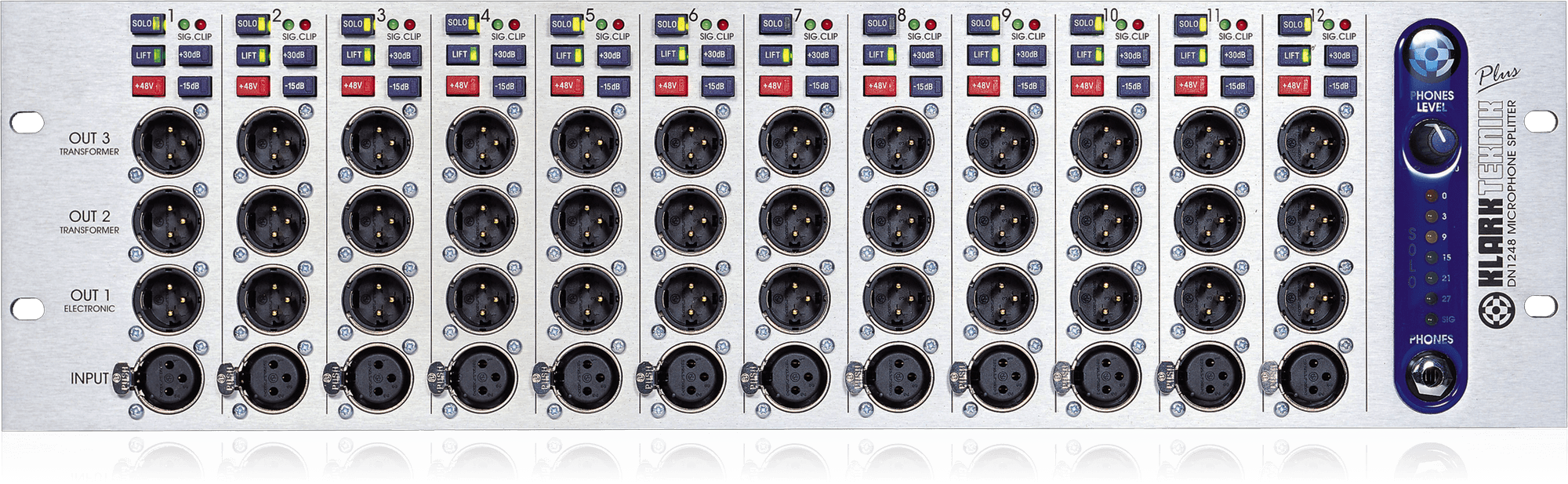

DN1248PLS — 12-Channel Active Microphone Splitter

The DN1248PLS is a 12-input active microphone splitter purpose-built for FOH/monitor/broadcast scenarios where a single source must be distributed without compromising signal integrity or introducing crosstalk. Twelve input channels each feed four discrete outputs — two electronically balanced for PA consoles, two transformer-isolated for broadcast feeds with ground-loop immunity.

Preamplifier Architecture

Each input is buffered by an award-winning MIDAS HERITAGE microphone preamplifier, adapted from the same circuit topology used in the flagship MIDAS Heritage consoles. The result is the wide dynamic range, low noise floor and headroom for which the Heritage preamp is recognised across the touring industry. Independent +30 dB and -15 dB gain switches per channel handle anything from condenser to dynamic source levels, and +48 V phantom and earth-lift switches are provided per channel.

Topology and Monitoring

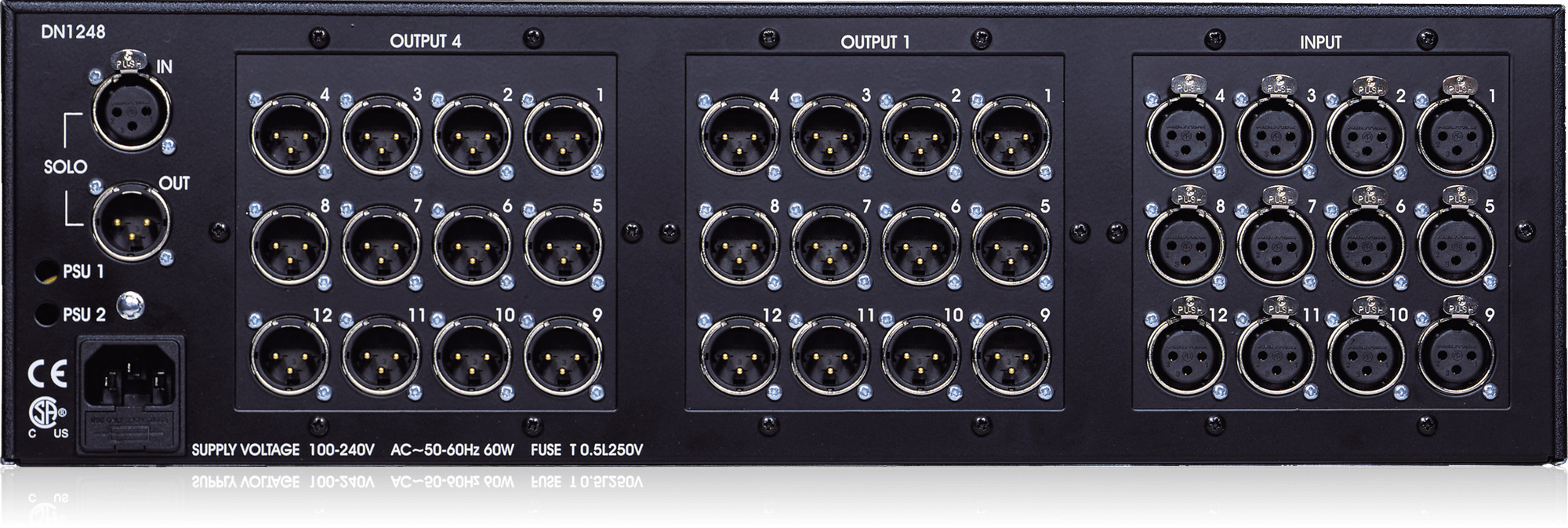

Input 1 and Output 1 are duplicated on both front and rear panels for cable-looming flexibility on stage trunks. A solo bus with integrated headphone amplifier and level control lets the engineer audition any channel pre-fade. Individual LED metering tracks each channel signal.

Application

Touring FOH/monitor splits, broadcast OB trucks, festival sub-rentals and corporate AV — anywhere a single microphone source must be routed to multiple consoles without compromise.

Specification Highlights

• 12 channels x 4 outputs (2 electronic balanced, 2 transformer balanced)
• MIDAS HERITAGE microphone preamplifier per channel
• +30 dB / -15 dB gain switches, +48 V phantom, earth lift per channel
• Solo bus with headphone amp and level control
• Inputs/outputs duplicated front and rear for looming flexibility
• 3U rackmount, auto-ranging universal switch-mode PSU
• Designed and engineered in the U.K.
